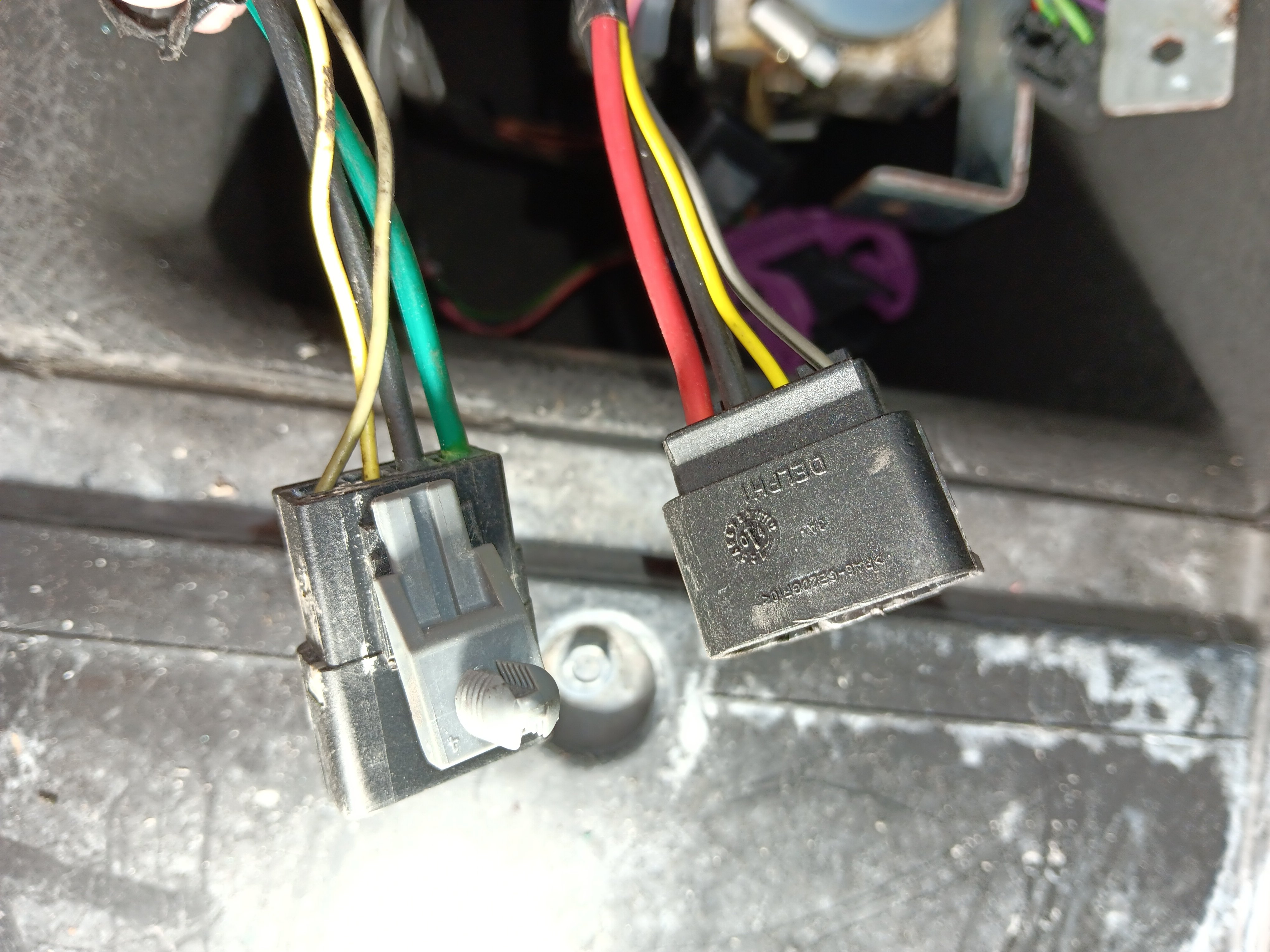

Does anyone know of the wiring diagrams for the top? all fuses are Good but I have no power to the trunk switch or the hydraulic pump. I found a connector with a burnt wire inside. Red on one side of the connector and green on the other side of the connector. Thicker than other wires. It has no power any time. Access on or off or roof button actuated. Does anyone know if there should be a constant 12v ever? Or under what conditions I should be able to get 12v to the pump area?
