2006 XLR-V BCM pinout

J

Jamez74

Member
Joined
Apr 18, 2025
Messages
5
Location
Estonia
My XLR/V(s)
2006 XLR, 2006 XLR-V
Does anyone have the pinout for the 2006 XLR-V body control module/fusebox connectors?

Can you post a photo of the connector you’re looking at?

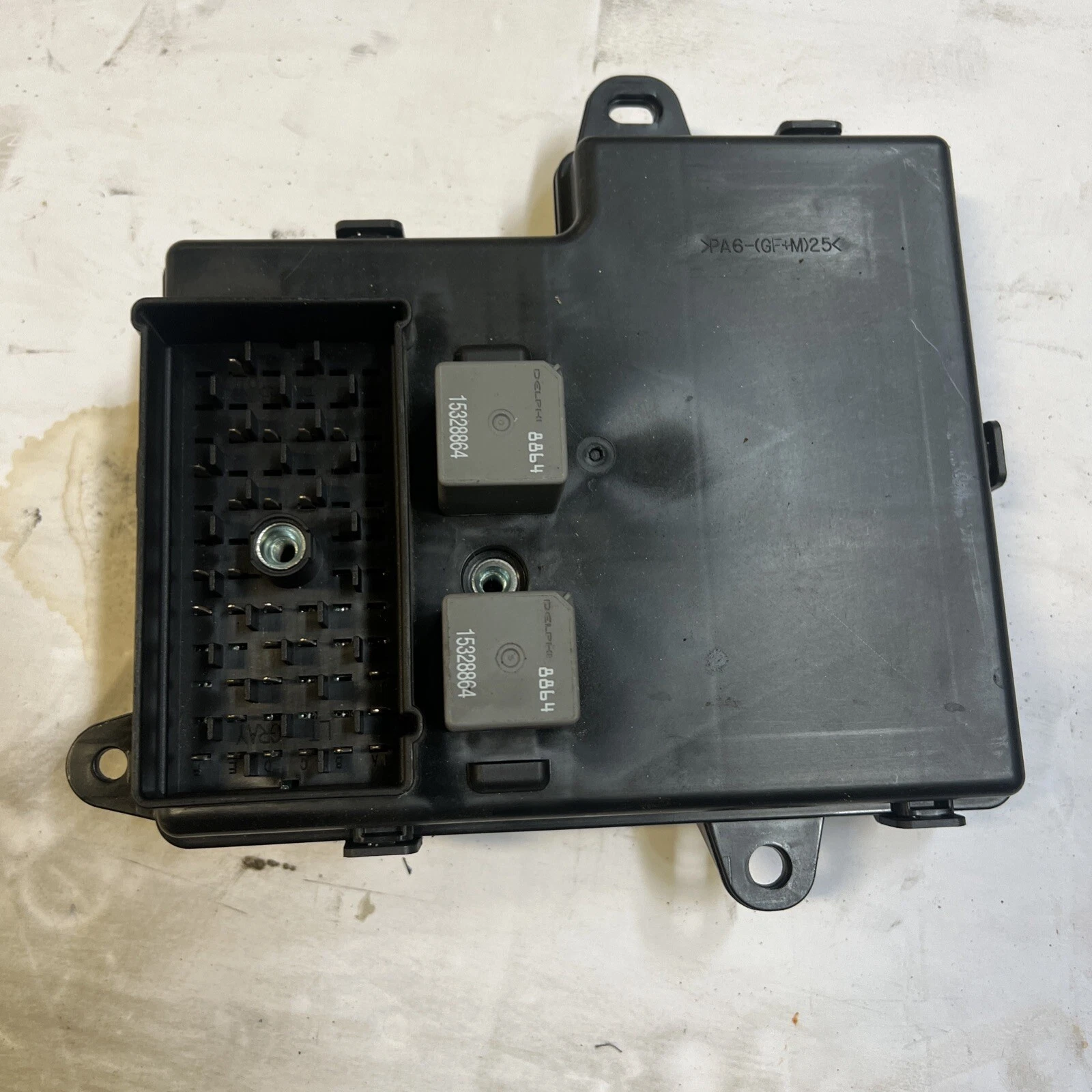

That on. The one on the back.


Attachments

  • s-l1600.webp
    287.4 KB · Views: 14

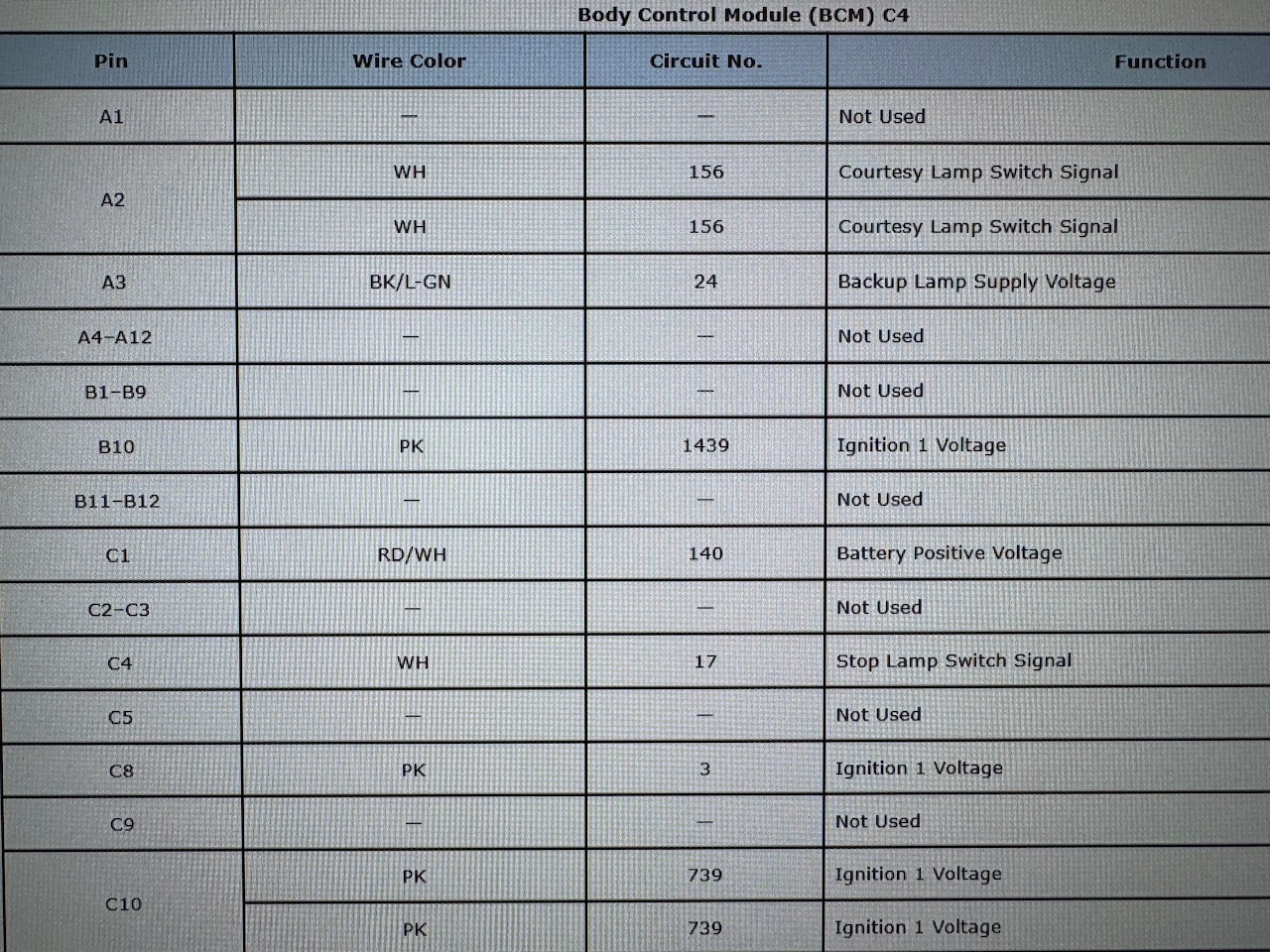

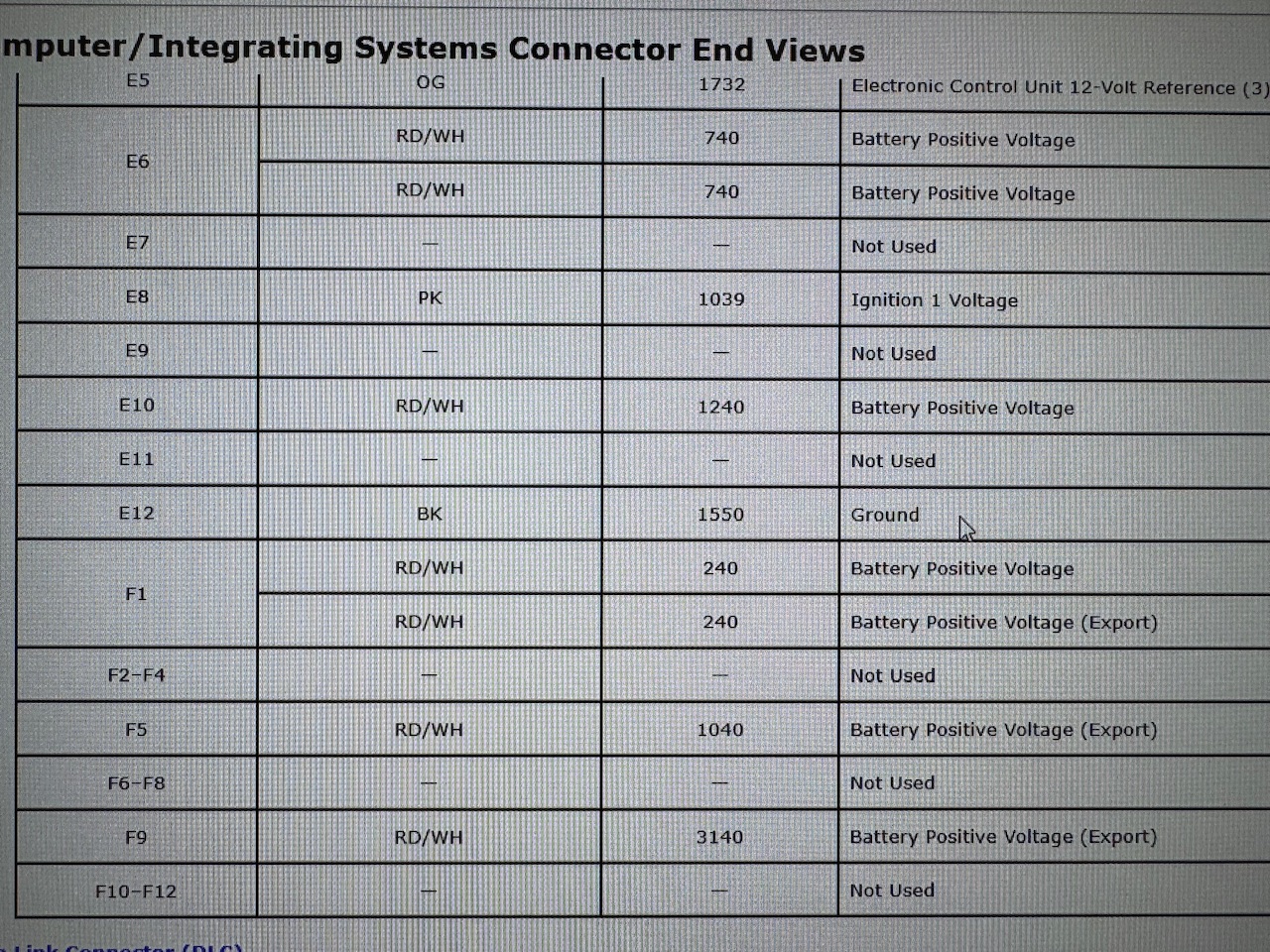

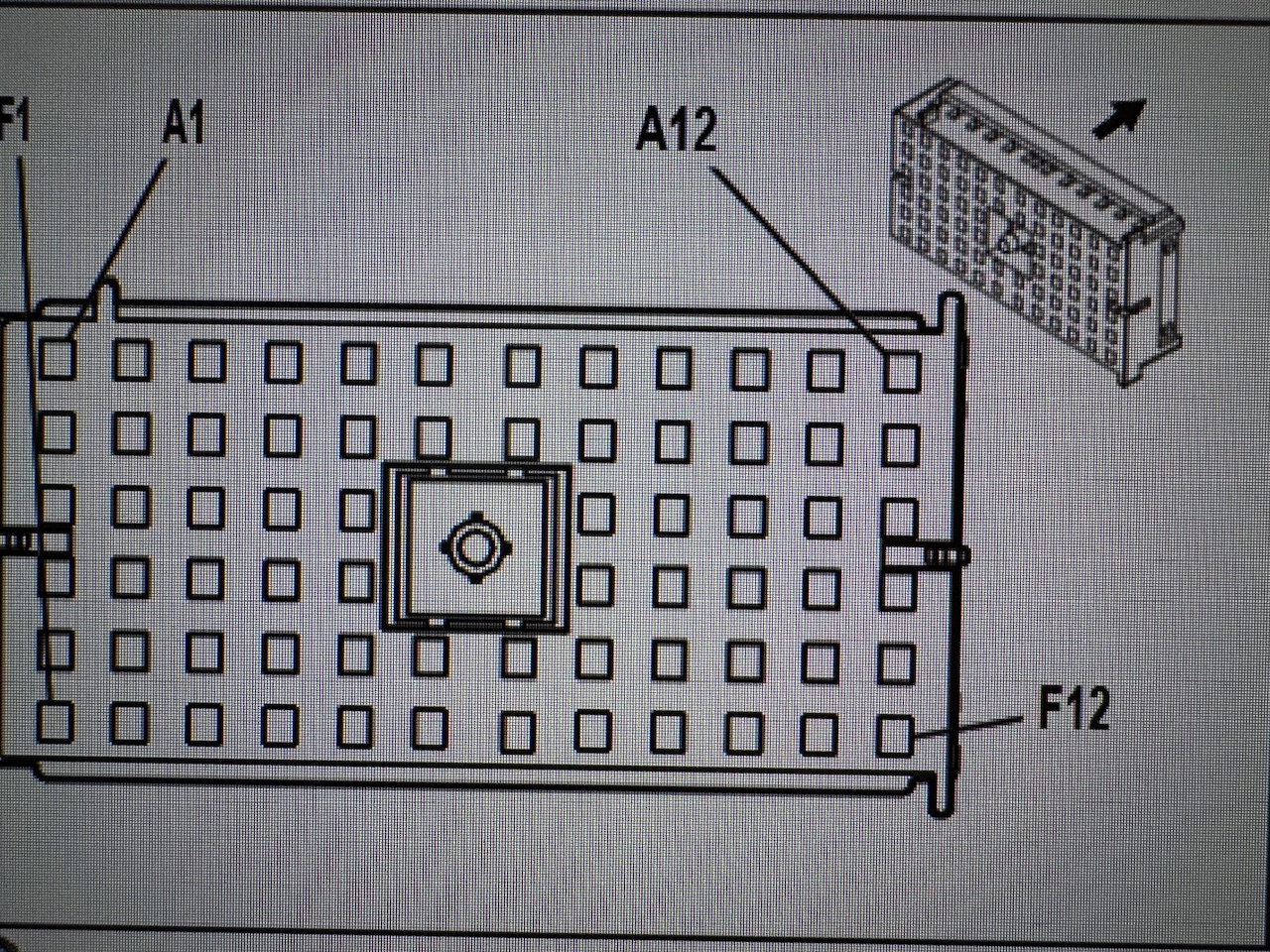

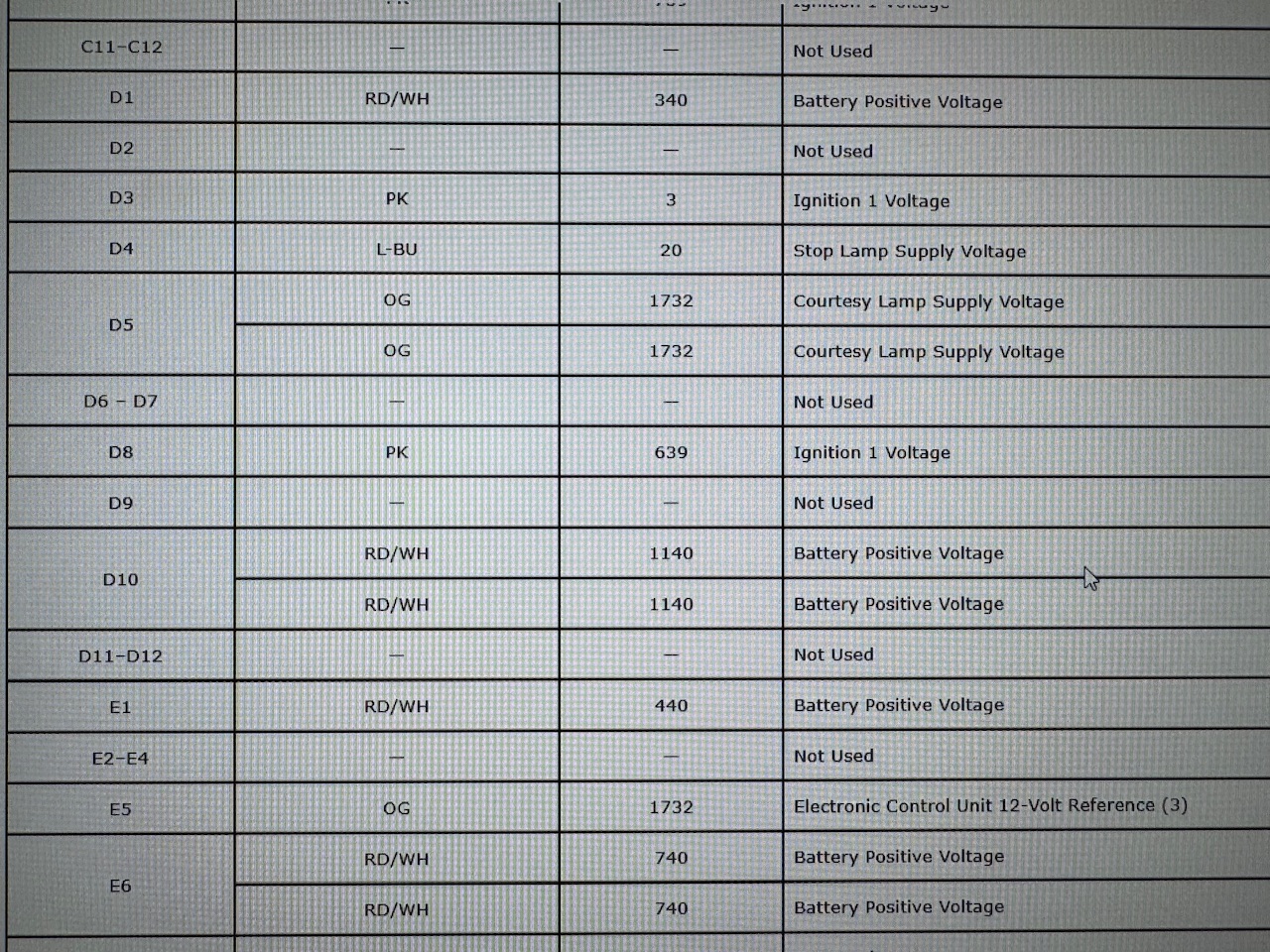

Got you. Few photos incoming.


Attachments

  • IMG_1125.jpeg
    836.8 KB · Views: 18
  • IMG_1126.jpeg
    688.8 KB · Views: 20
  • IMG_1127.jpeg
    644.8 KB · Views: 18
  • IMG_1128.jpeg
    719.5 KB · Views: 23
