David Mader
Member
So am I to assume that every headlight with over 30,000 miles has the burned lens cover?
Headlights
- Thread starter David Mader
- Start date
- Thread starter
- #3
David Mader
Member
Is the upper lens/light supposed to amber or clear? I’ll thought the heat discolored it?
IAN
Seasoned Member
David
The lens is clear and the bulb is amber, a recall was made by GM, was XLR been repaired of the over heat amber bulb and the defective socket.....may be not.
IAN
The lens is clear and the bulb is amber, a recall was made by GM, was XLR been repaired of the over heat amber bulb and the defective socket.....may be not.
IAN
- Thread starter
- #5
David Mader
Member
Was yours repaired by GM or was it out of warranty?
- Thread starter
- #6
David Mader
Member

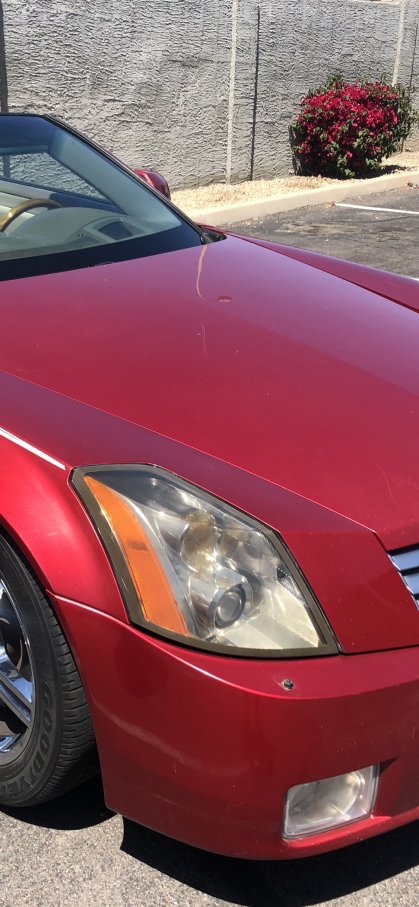

In the photo you attached, it looks like yours is discolored.
IAN
Seasoned Member
Enclosed are photos fron my repair XLR album, made from many years.

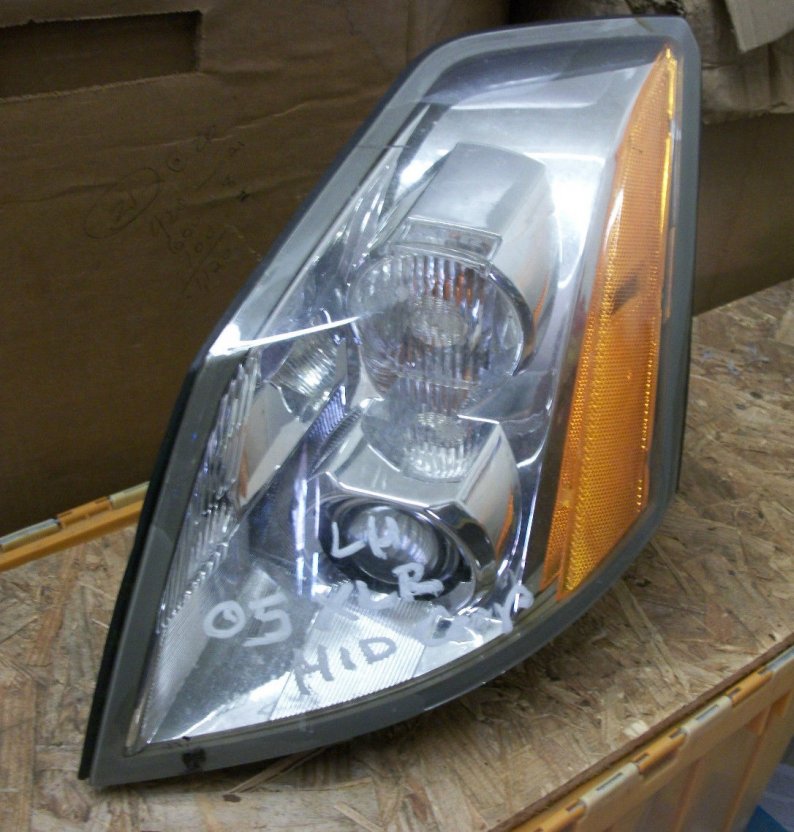

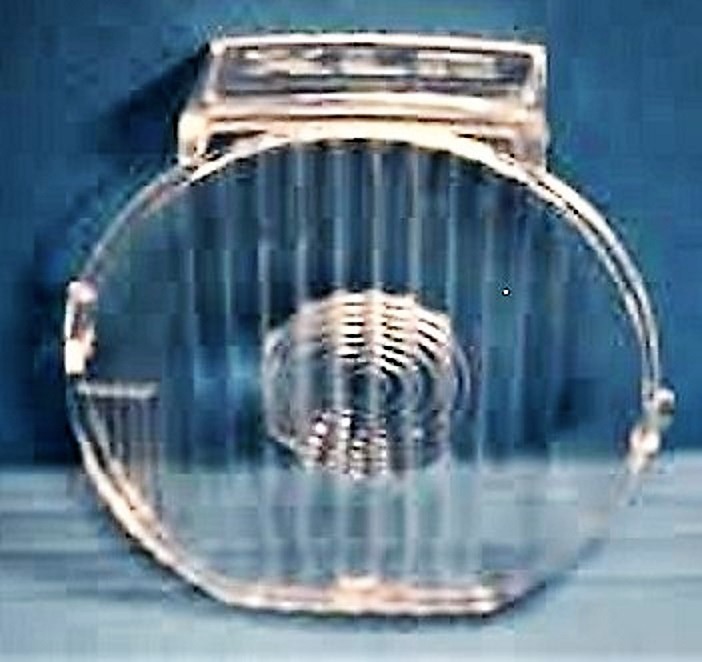

A used excellent headlight with a clear indicator lens, note the amber bulb, also is the lens it self of how it looks like.
Hope that will help.
IAN
![A4 $_57[3] (2).jpg](https://www.xlr-net.com/forums/data/attachments/5/5167-6718fa85b3638a80dfde40073abce984.jpg?hash=Zxj6hbNjio "A4 $_57[3] (2).jpg")
A used excellent headlight with a clear indicator lens, note the amber bulb, also is the lens it self of how it looks like.
Hope that will help.
IAN
Gord
Seasoned Member
Ignore 'em! Drive the car and enjoy it!
Oh, I wish - I need to do swap my coil packs & do the valve covers, sine they are leaking into the spark plug gallies
With my amazing vision I srsly thought these were amber colored - oh well, part of its charm
Hi all, I would like to take the headlight assembly apart myself and do some improvements behind the lens. I've done this on other cars a long time ago, using the oven to heat up the assembly. Been looking around here for an instruction for the XLR headlight specifically. We all know the price tag for replacement ones, so I prefer not to fail this time ...
Recommended temperature and "barbecue time" would be perfect to know. A video? Or can it be performed with an ordinary heating gun perhaps? It's like holding an ancient vase from a museum in your hands, this headlight ... Don't drop!
Thank you/Stefan
Recommended temperature and "barbecue time" would be perfect to know. A video? Or can it be performed with an ordinary heating gun perhaps? It's like holding an ancient vase from a museum in your hands, this headlight ... Don't drop!
Thank you/Stefan
mickeytee
Seasoned Member
danger danger. The headlights on these cars are super sensitive to repair. The outer lens clear is bonded to the reinforcement ring greenish gray. I dotn know of anyone that has found the actual process of how that is done. In 2006 when GM upgraded the lights and changed manufactures they got it wrong and they are known for the outer lens blowing off the headlight. That is why all the spares are gone to replace those many lights that failed.. The inner reinforcement ring is glued to the gray plastic housing with a butyl type product but unlike 90% of cars it gets very hard and is hard to soften up even with heat. The temperature to loosen the seal is just a little less than the temp that will release the outer lens .Once the outer lens comes off , I have not seen anyone that can bond it back without showing up and looking pretty awful. I have done a couple and a heat gun and very slowly working the temp up has gotten positive results. I also manufacture the inner lens DRL. Some people just pour the heat to them, pop them apart and keep on going . I am not that brave. show us what you come up with.
Arandich
Member
Nope. Mine are in perfect condition close to 50K. So hard to know unless the car had a previous owner
mickeytee
Seasoned Member
they will all burn the upper DRL unless you either turn off the running light or replace the bulb with an led. The bulb sits too close to the DRL lens. Its the heat and time on more so than mileage I have seen a few with 60k ,miles with jus ta little burn and some with 30 that had already cracked and fallen apart. 04/05 are the worse .
In my case no problem with burned upper lens, for the simple reason that there were no daytime running light requirements on export models (I'm in Sweden). That upper lens is only used for the turn signal here.

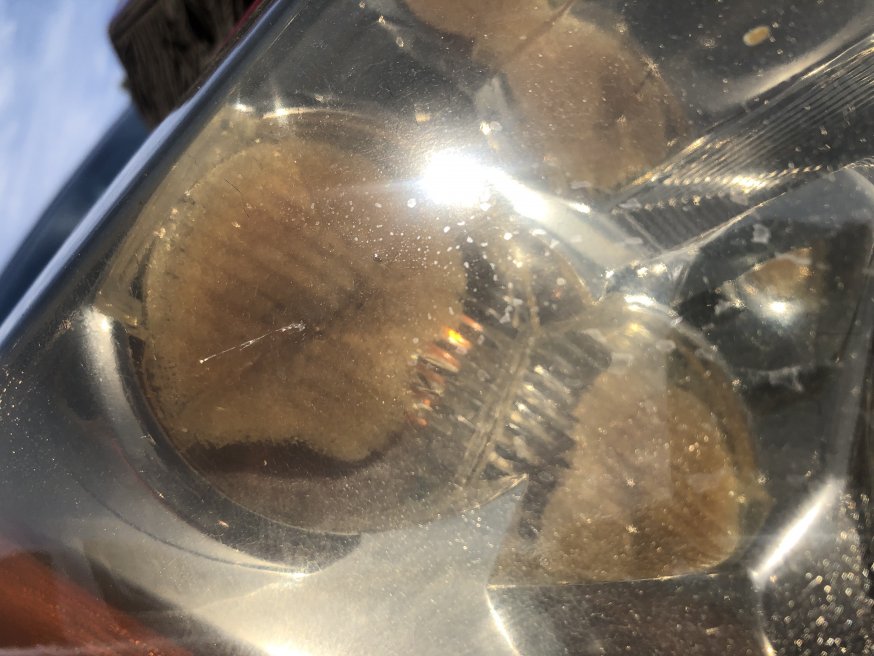

I have other reasons for wanting to get inside my headlights. Stains on the inside of the lens, probably from previous moisture problems.
I have other reasons for wanting to get inside my headlights. Stains on the inside of the lens, probably from previous moisture problems.
